Letterboxed Solver
Author: Conor Hayes
Overview

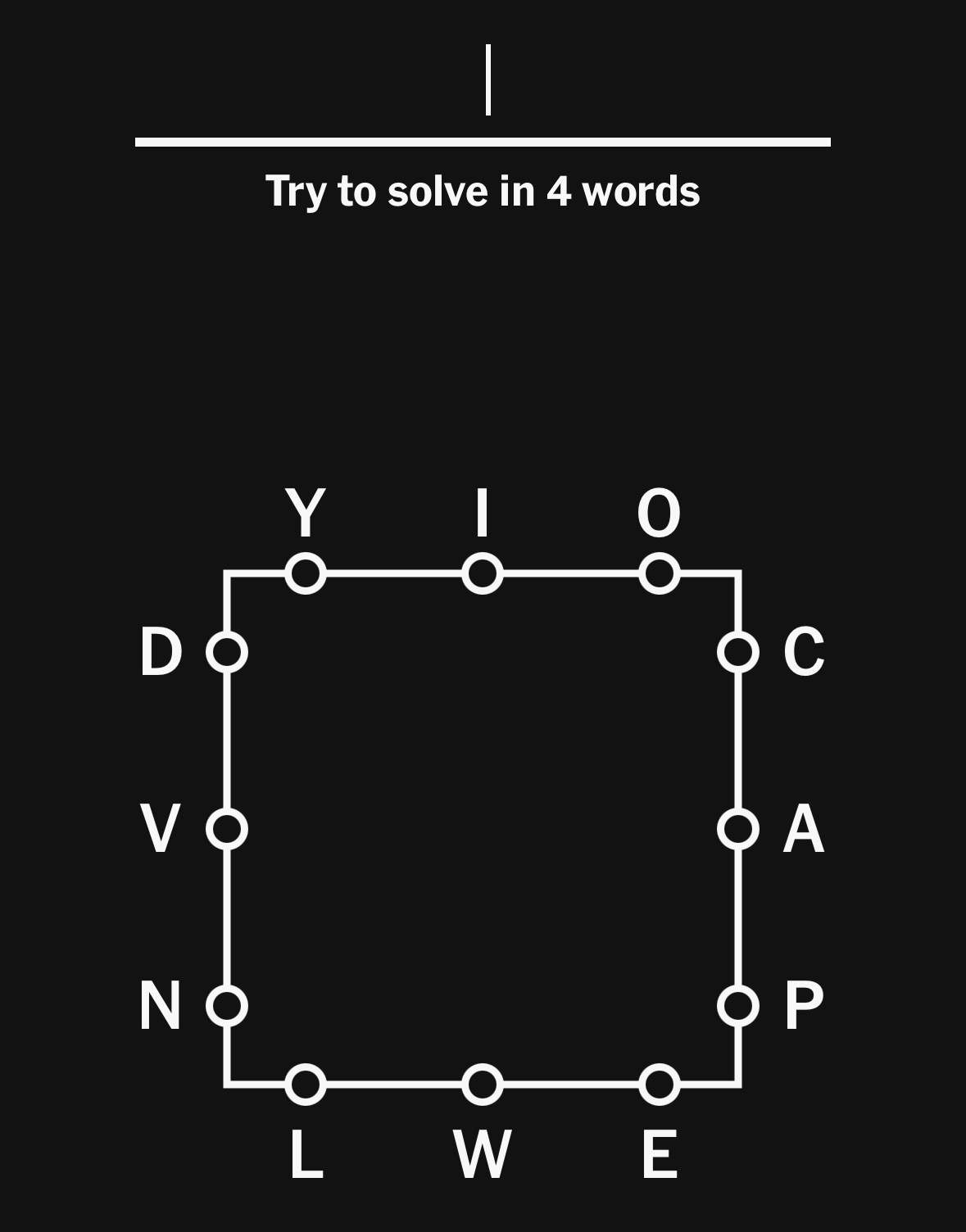

As a practice project to learn Rust, I wrote a program to optimally solve NYT Letterboxed puzzles (as well as more general puzzles with more sides and letters) using an algorithm I designed.
The program translates the puzzle into a graph search problem and applies the A* algorithm to find the optimal solution efficiently.
Features
- Solves standard NYT Letterboxed puzzles
- Generalizable to puzzles with different numbers of sides and letters
- Efficient Rust-based implementation for guaranteed-optimal solutions (benchmarked at 70ms)
How it works

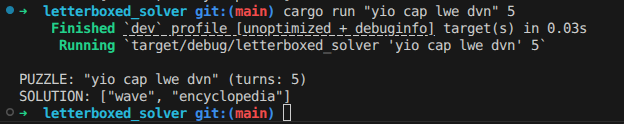

The solver finds an optimal (i.e. shortest number of words possible) solution to the puzzle
by translating the problem into a graph search task, then applying A* search.
Here’s my design:
Graph + heuristic definition
define:
coverage(v)is the set of puzzle letters covered so far at vertexvletteris a given letter present on the puzzlecoverage(e)is the set of previously uncovered letters covered by edgee(L*S)is the total number of letters on the puzzle
our graph:
- vertex
v: a tuple of(letter, coverage(v)) - edge
e: an individual word, connecting from its first letter to its last letter - edge weight
|e|:1 <= |e| <= (L*S). We want to minimize the number of words in our solution, so each word weighs the same. For a guaranteed-optimal solution, we use|e| = (L*S), but for faster suboptimal solutions, we can use lower values of|e|. (See below for explanation on why)
our heuristic:
h(v) = (L*S) - |coverage(v)|
This heuristic+edge weight combo is chosen to ensure that the heuristic is “admissible”,
meaning it never overestimates the actual cost to reach the goal.
A* needs h(v) to have this property to guarantee finding an optimal solution.
why is each vertex a tuple?
For instance, why not have each vertex be a word, or a letter?
Defining each vertex to be a word, connected to possible subsequent words, is another viable solution. However, this graph representation fails to encode a key aspect of the puzzle: that if 2 words cover the same uncovered letters, and start and end with the same letters, they are equivalent in terms of game state/proximity to our objective. Encoding this idea into the graph enables a faster search, by shrinking the search area. Note that this issue could be addressed with a clever heuristic, making this solution similarly viable to my implementation.
Defining each vertex to be a letter, connected to possible subsequent letters, doesn’t work, because correct solutions on this graph will almost certainly contain cycles, which aren’t discoverable by standard A*.
Making each vertex a tuple of (letter, coverage(v)), where each letter is a start/end letter of a word, ensures that there are no optimal cyclic solutions on the graph; this is because any path containing a cycle can be made shorter (and still valid) by omitting the cycle (i.e. bib - bib - bark can be shortened to bib bark, and brane - earn - nab - brane - early can be shortened to brane - early).
why the weird edge weight?
Intuitively, h(v) = (L*S) - |coverage(v)| makes sense because we probably get closer to the goal the more letters we’ve covered.
A naive approach would then be to set the edge weight |e| = 1.
However, this weight makes h(v) inadmissible–consider the case in which we cover the whole puzzle in a single lucky word. In that case, h(v_0) = (L*S) for start vertex v_0,
but the actual path cost is C = 1.
We resolve this issue by setting |e| = (L*S) so that h(v) >= C for all v, since min_possible_path_cost = (L*S) >= (L*S) - |coverage(v)|.
That said–this optimal solution takes more time to find (though still really fast for an NYT puzzle, about 5ms on my laptop). An empirically faster, possibly suboptimal solution may be found by setting edge weight to a lower value.
Note: search will be constrained such that we will not traverse more than max_words edges.
Note 2: Before running A*, we first reduce the graph size by eliminating all invalid words from the dictionary, i.e. words that cannot possibly be formed using the arrangement of letters on the particular puzzle we’re solving.
